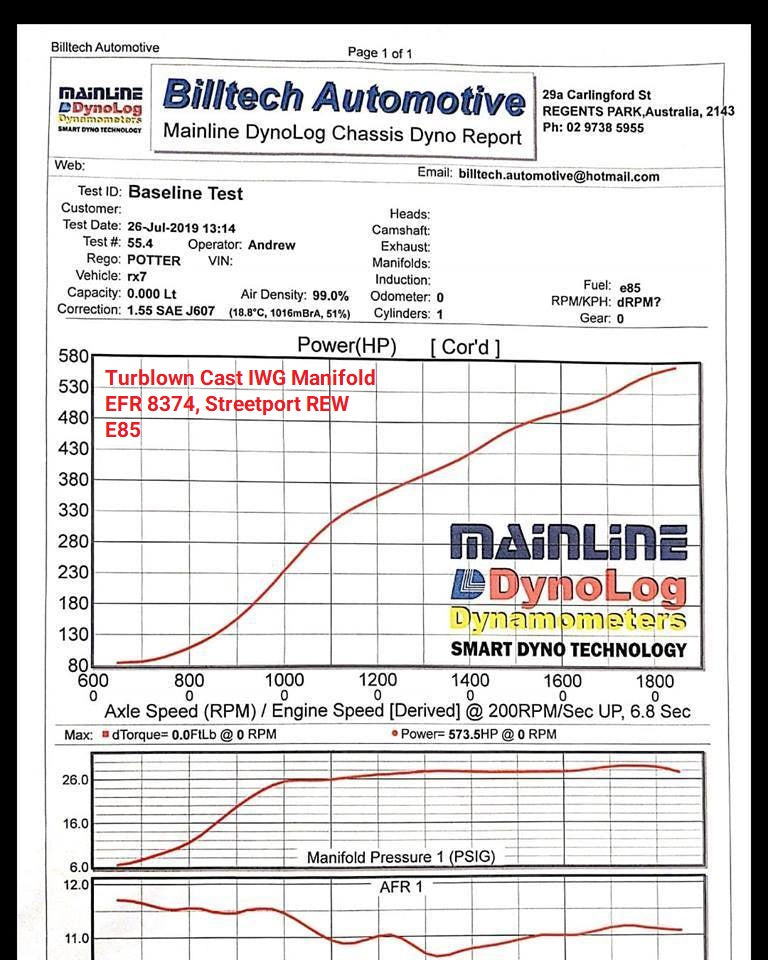

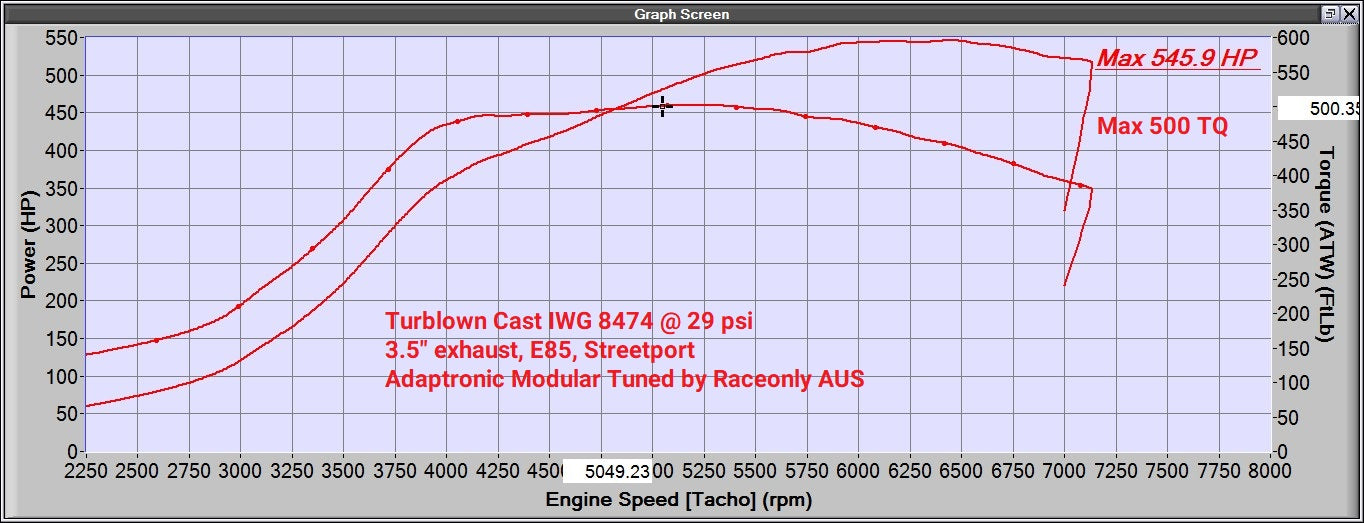

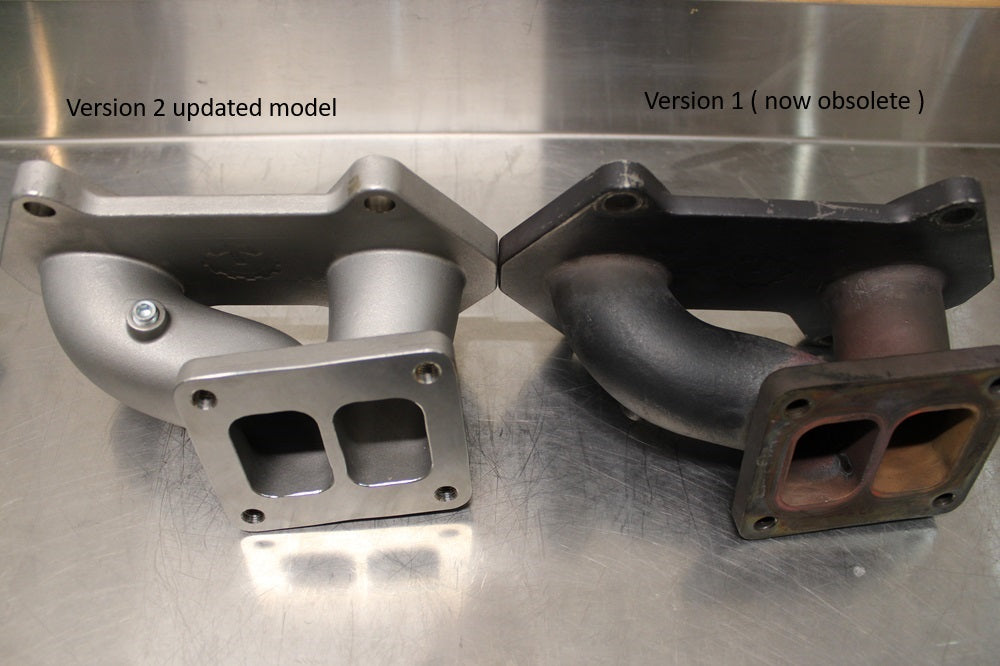

Turblown Engineering's Cast EFR IWG Turbo Manifold now supersedes our older welded version . This manifold when combined with an EFR 7670, 8374, 9174 or 9180 delivers the fastest boost response possible for each frame turbo. This combination will make your 13B 2 rotor feel like a 20B in the low end and mid range at higher boost pressures.
Cast 347SS This manifold is cast from 347SS which is far superior to 304SS. Not only does 347SS last longer at elevated temperatures , there are no welds like those found in traditional turbo manifolds. When a welded turbo manifolds fails, they almost always break at or next to the welds. A broken turbo manifold even if it features a life-time warranty can be a serious hassle to remove and send back in for repair, especially if you miss a race because of it. We have weighed our cast manifolds vs our welded units and they actually weigh a few ounces less! Since these manifolds are investment cast, they are less than 1/2 the thickness of your traditional cast iron turbo manifolds, and therefore do not retain as much heat as cast iron manifolds. There arezerodownsides to this casting process vs welding. Tapered Main Runner Inside Diameter This manifold's inside diameter slowly tapers down as it reaches the T4 flange. This process is only possible with a cast manifold. A traditional welded manifold does not change inside diameter. This tapering process is identical to the volute of a turbine housing. By tapering down it increasing velocity, and speeds up the exhaust flow and increases boost response. CNC machined flanges All flanges are CNC machined to be perfectly flat. Most turbo manifolds are just belt sanded flat, which is not as accurate as CNC machining. Smoother transitions Welded turbo manifolds require hours of hand porting with a die grinder, and sanding drums to contour the change in shape from a round tube to a square T4 flange. We have taken this step, just like the rest of the manifold, to an even higher level of quality. The investment castingprocess makes every transition seamless. Welded manifolds are made from short pieces of cast elbows. Every time there is a joint it is welded, there can be a slight disruption on the inside diameter if the pipe is not perfectly matched, or the weld penetrates all the way through. This disruption is eliminated with the casting process resulting in a better flowing turbo manifold. Fitment Only the 7670 IWG turbo will fit the FC3S 13BT engine without modifications. 8374, 9174 and 9180 require 1/8" removal of the LIM flange where it meets the block on FC 13BT engines. We do offer this service. S5 FC3S Waterpump housing will not clear 8374 or 9180 without modifications, or moving to s4 water pump housing( will swap onto S5 front cover will a little work).

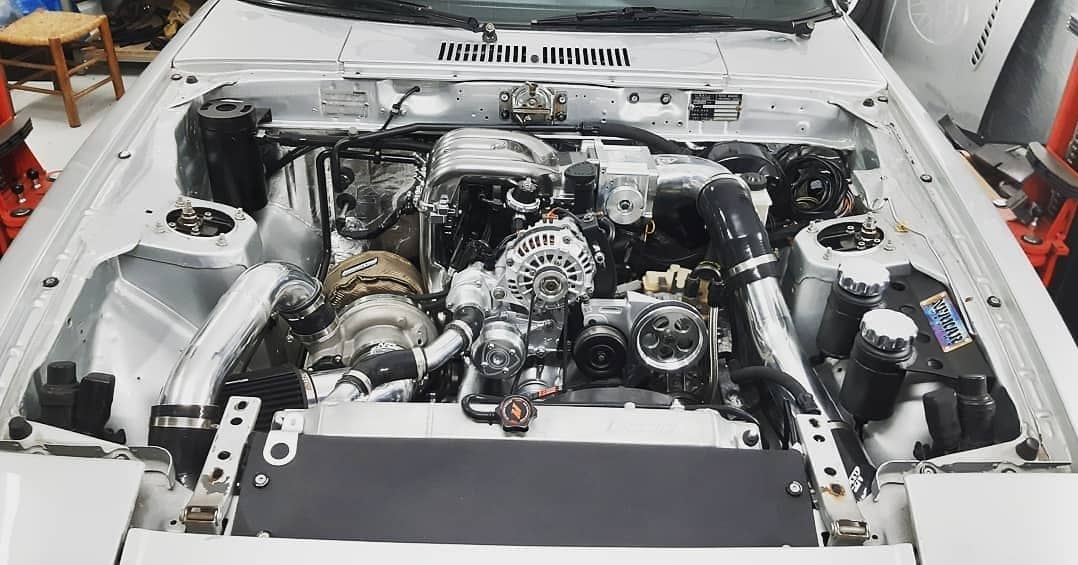

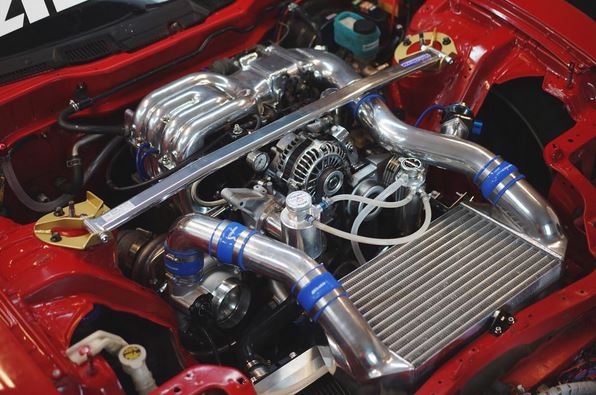

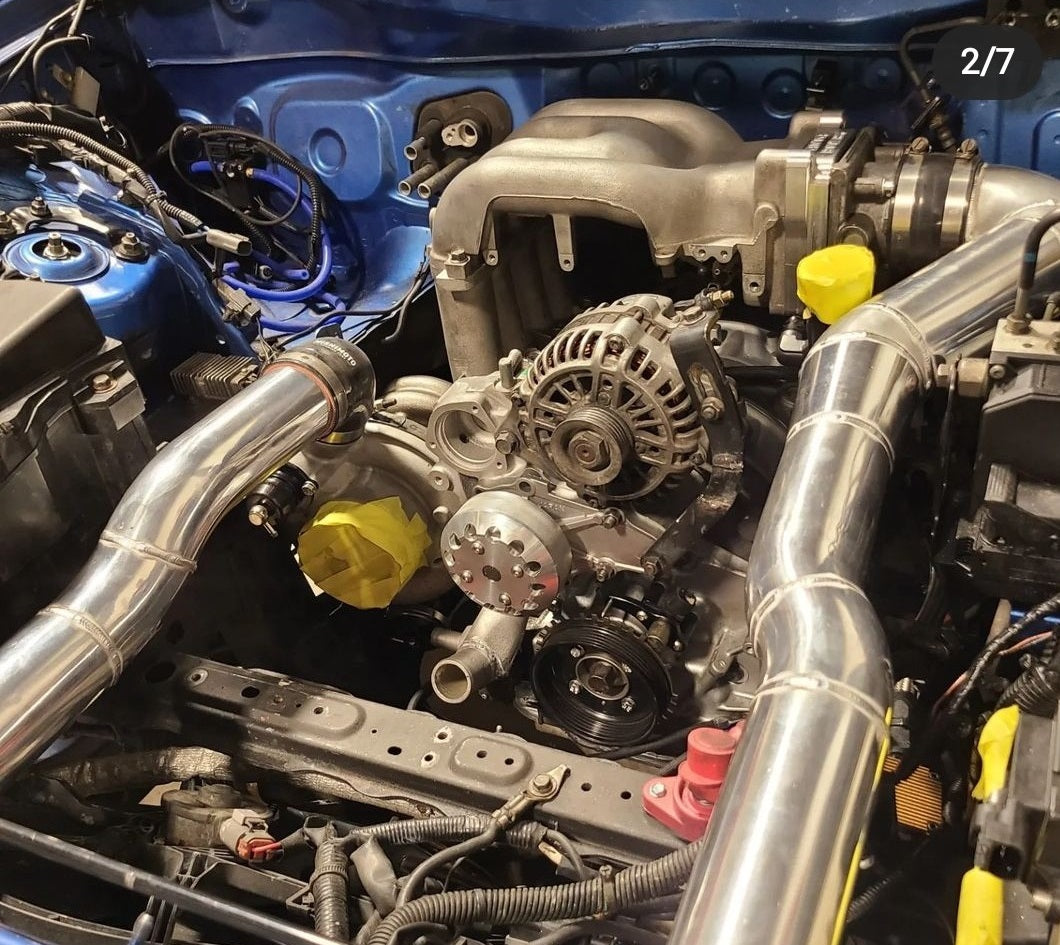

7670, 8374 and 9180 will fit the 13BRE, or REW engines regardless of 2nd or 3rd gen chassis selection without modifications to the stock LIM. This system is RHD compatible for FD3S & FC3S chassis. 1st gen FB chassis fitment for engine swaps is same as above. 7670 IWG has been confirmed to fit JC cosmo with 13BRE. Optional Inconel turbine housing advised for FC3S fitment.

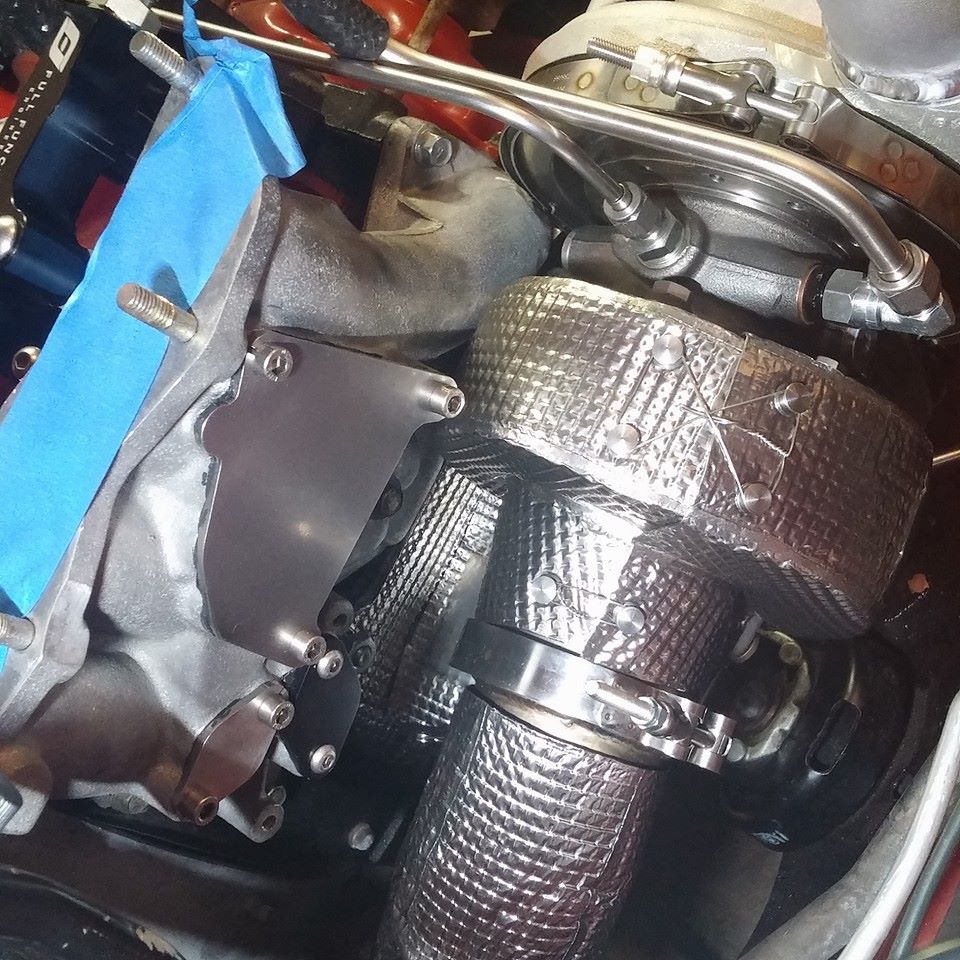

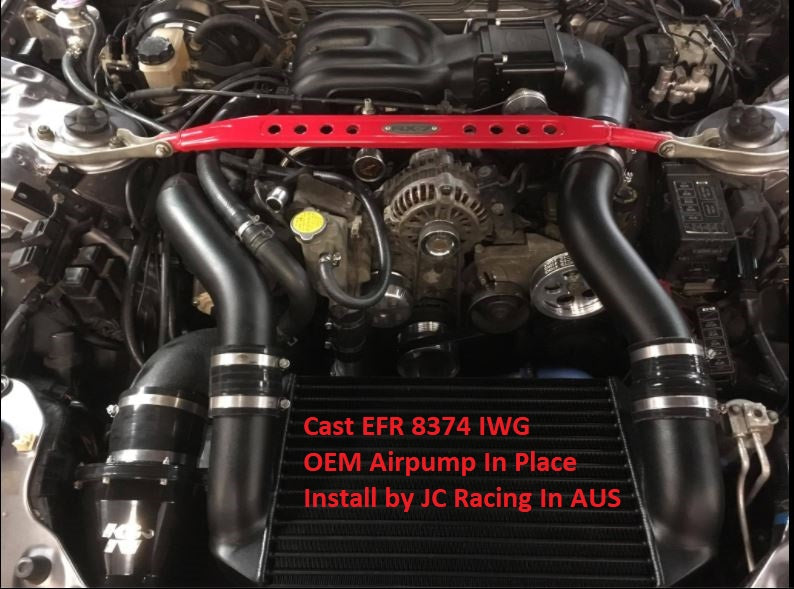

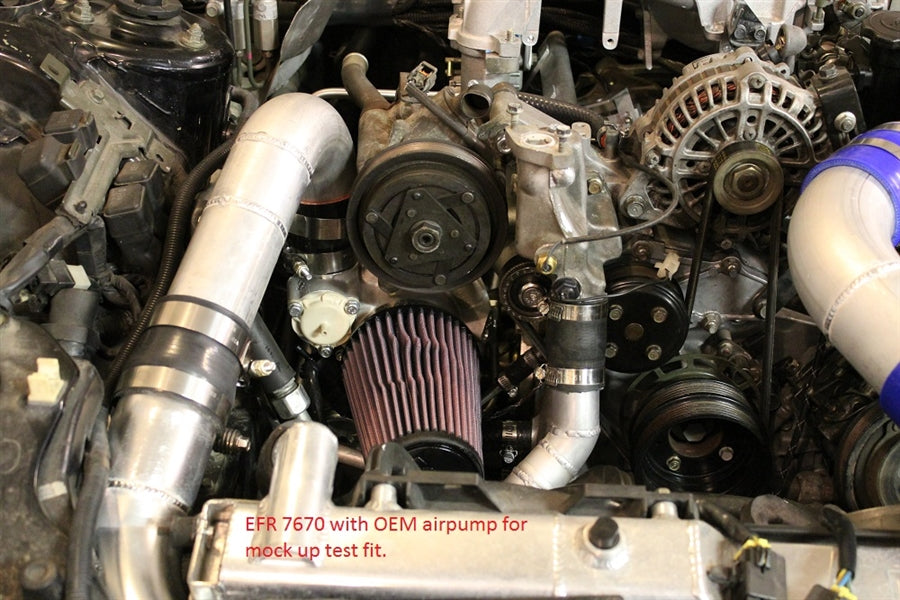

TurboSource Inconel T4 turbo gasket is recommended. Standard stamped 304SS gaskets will require grinding on OEM 93-2002 Rx-7 lower intake manifold to clear 8374 and 9180 compressor cover. Slightly grinding is required to fit Xcessive Manufacturing 3rd gen lower intake manifold even with the Inconel Gasket sometimes. OEM FD3S airpump will clear EFR 7670 selection with no modifications. EFR 8374 & 9180 require slight grinding, and a custom tensioner bracket( see photos).
Pictured waste-gate bracket adapter is required for all chassis models. OE BorgWarner unit will not work with turbo orientation.
Studs are required for all IWG EFR turbochargers. Bolts physically cannot clear rear near turbine housing.
Optional 3" mandrel bent downpipes are available for FD3S chassis. Will clear RHD models. Stock location 3" 2 bolt vibrant flanges. Requires 3/8" hardware to bolt to FD OEM cat( not the same exact flange, but it does work).
5 year warranty on turbo manifold.

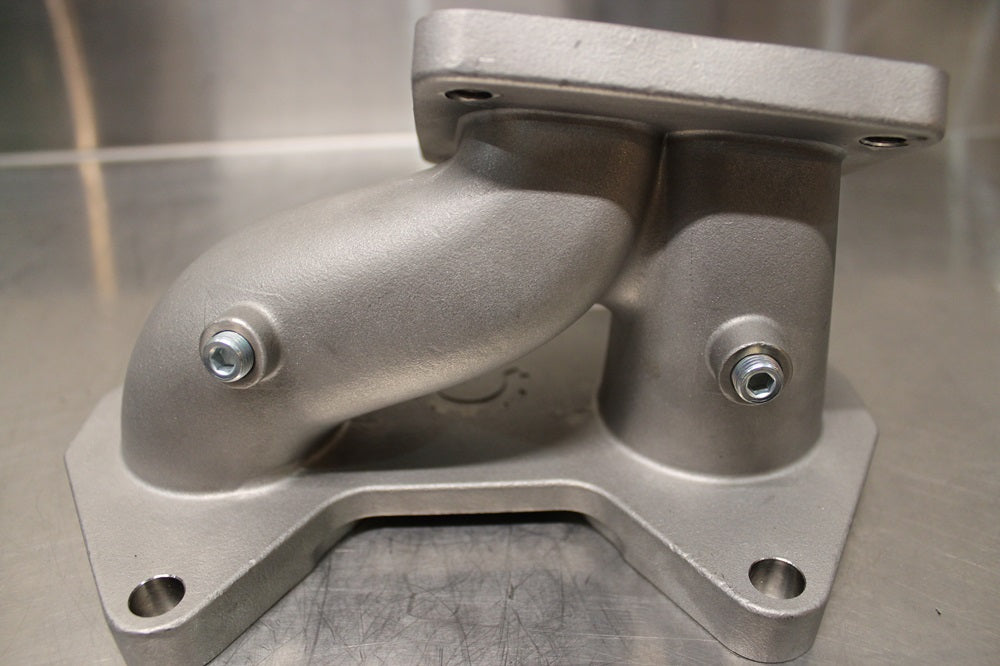

This manifold comes standard with twin 1/8 NPT exhaust gas temperature or exhaust manifold backpressure ports( plugs included- require anti-seize and final tightening if plugs are to be used).
Turbo Hardware is NOT included. T4 flange thread pitch is M10 x 1.5
