Turblown FD3S Oil Pan

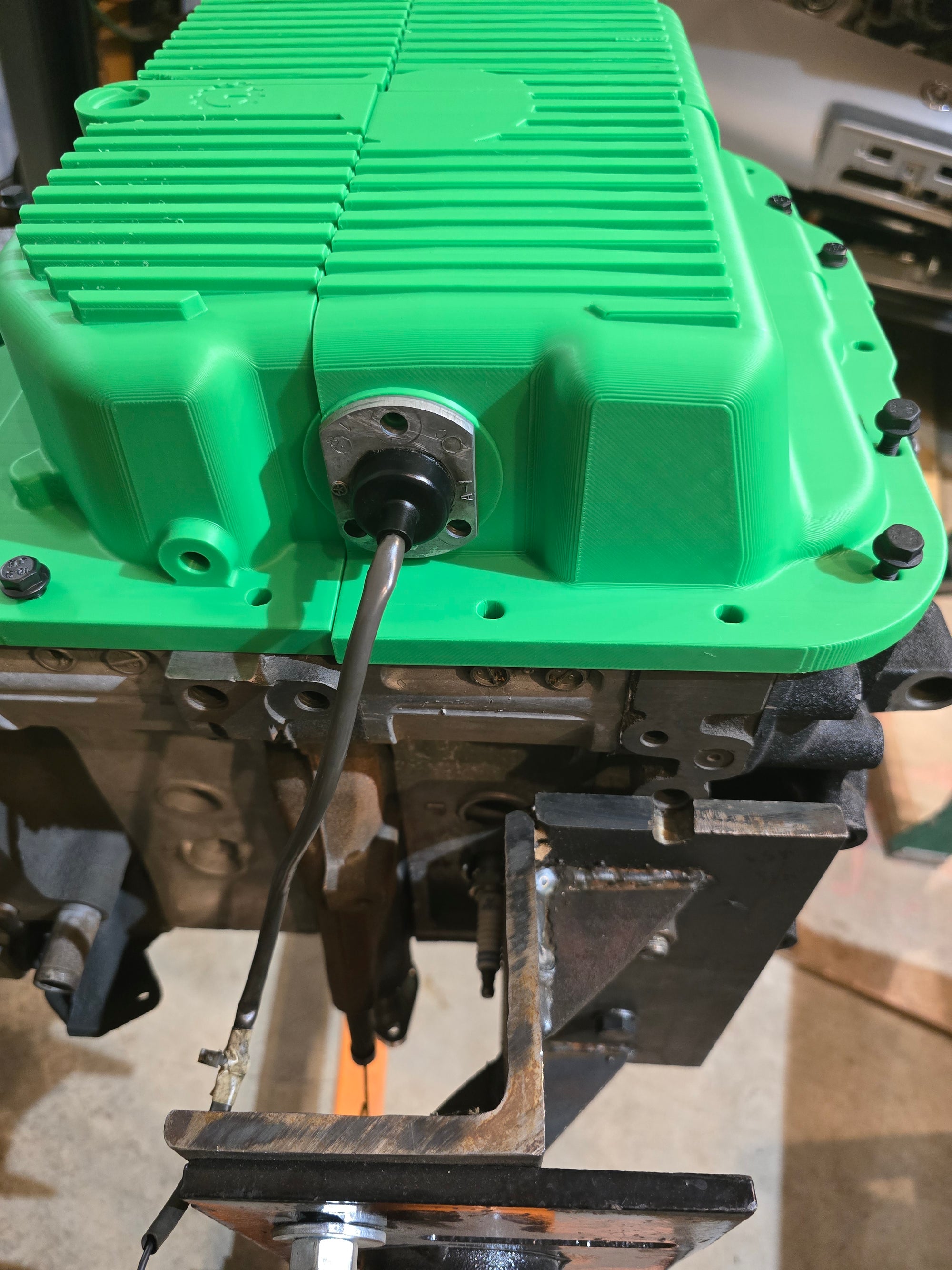

We are now making 600+ of these pans( we have inspected our samples, and are currently installing several to double check fitment)

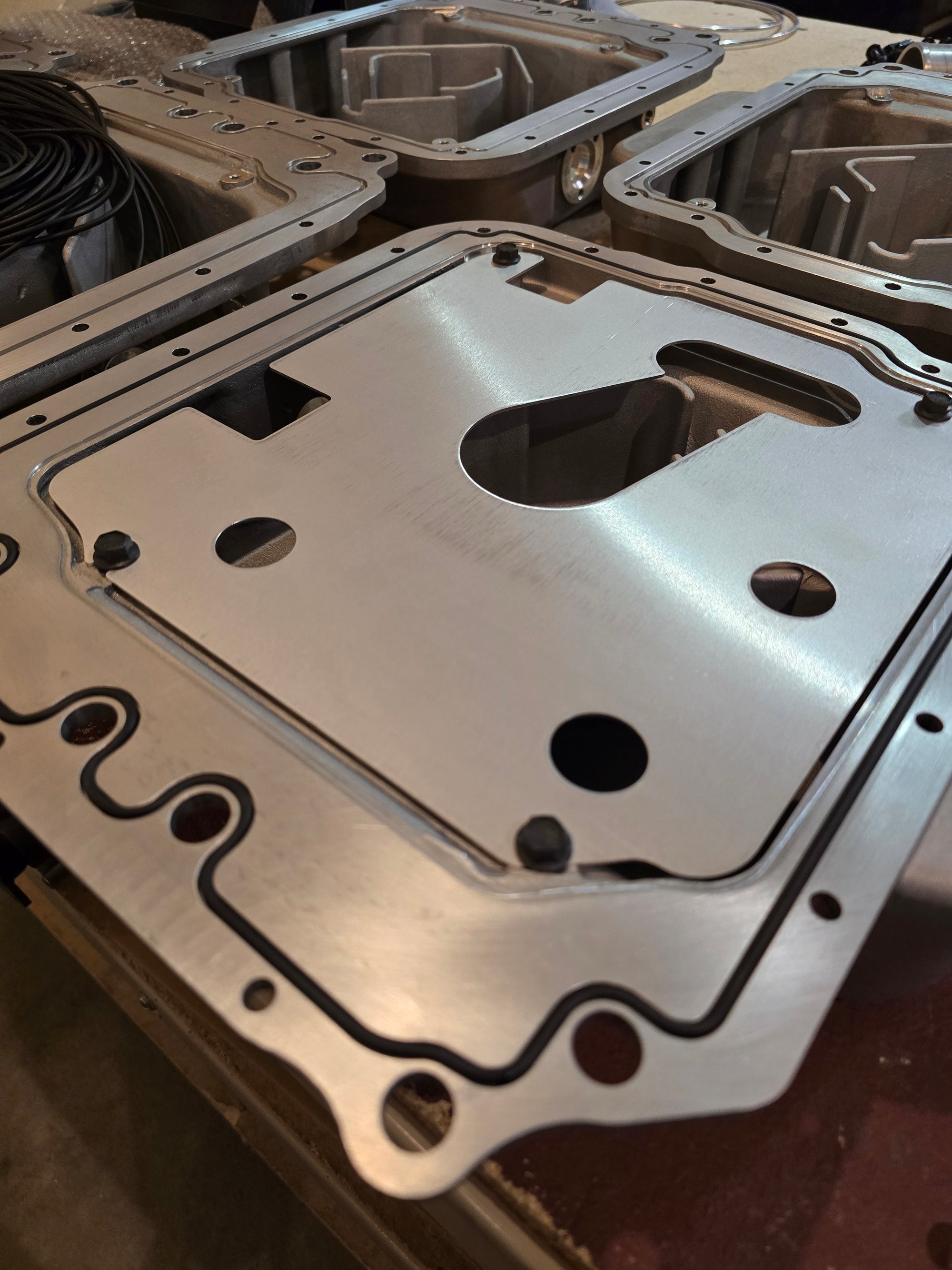

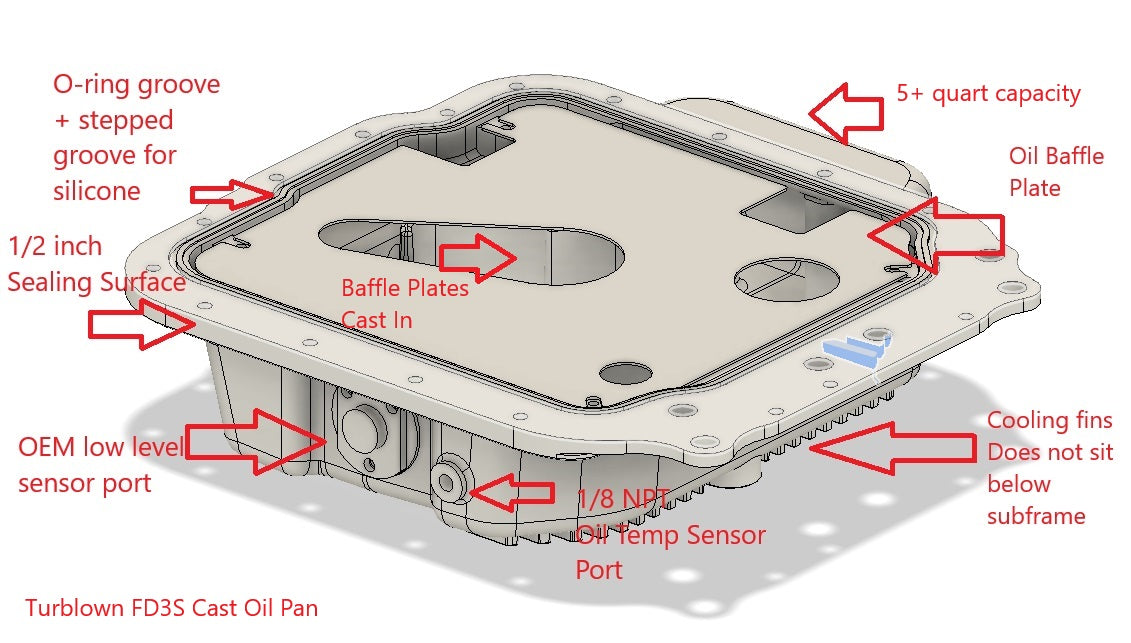

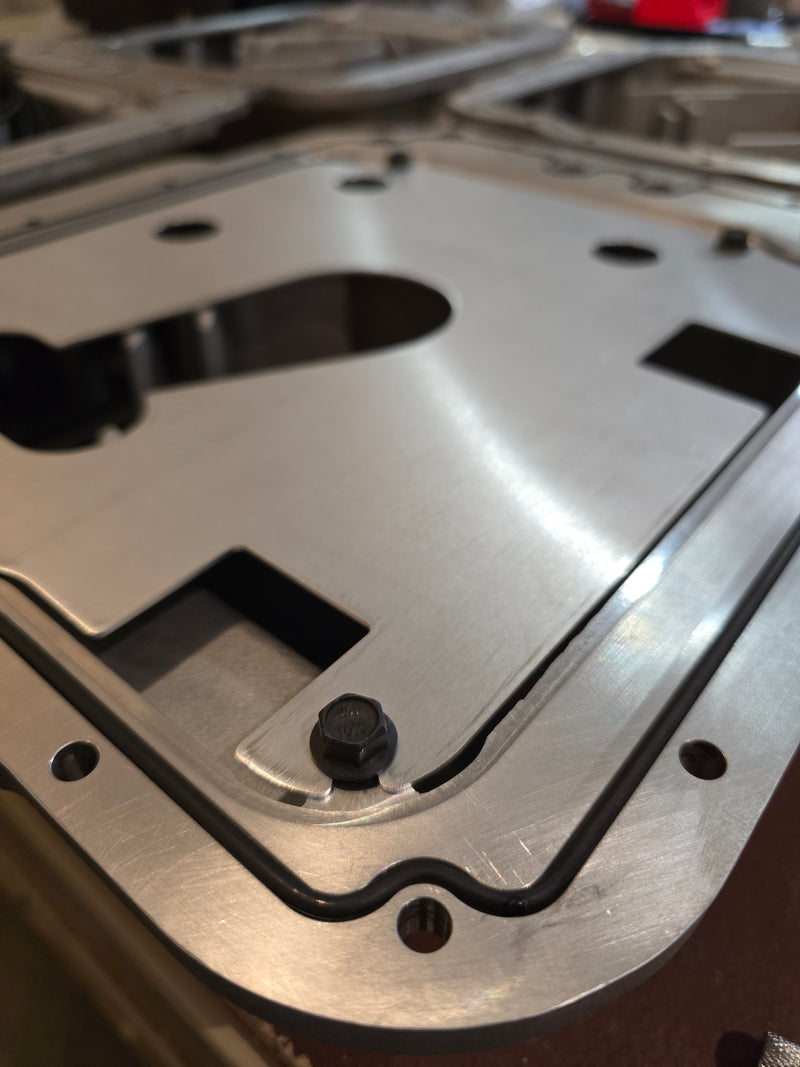

O-ring for better sealing than RTV/Gasket alone( RTV is still recommended to add)

No need for an oil pan brace. Extra thick 0.50" flange increases rigidity and sealing substantially. The FD3S oil pan is 7mm thick( 0.275 inches) near the motor mounts, so the engine will raise about 6mm if using the OEM engine mounts. FFE mounts are adjustable, and can lower motor back down.

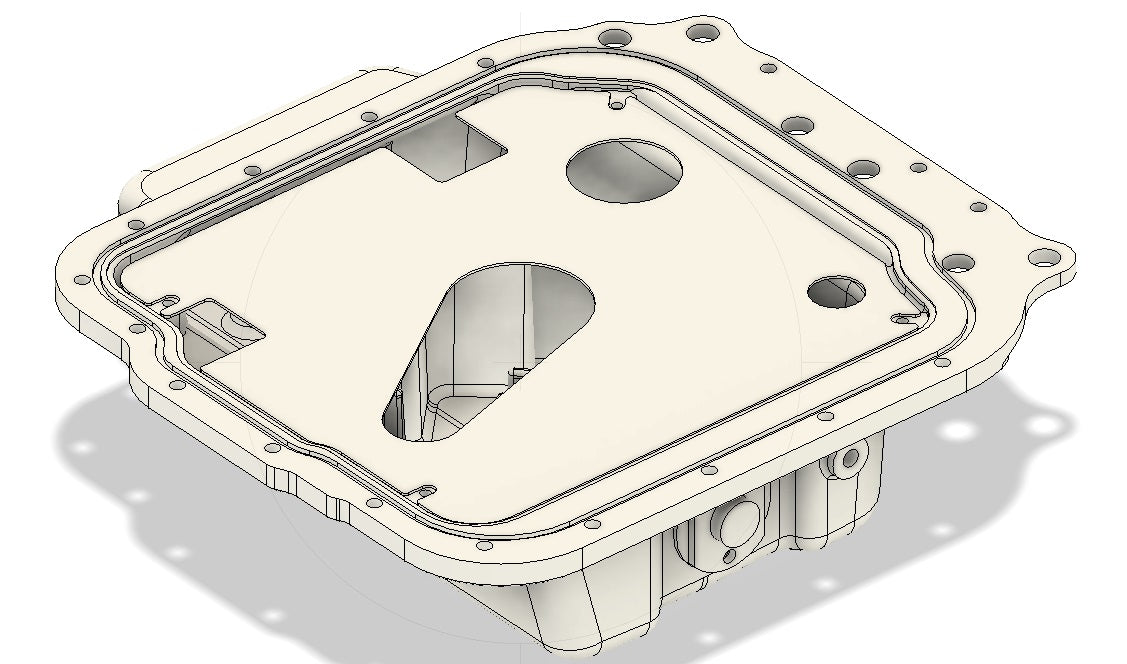

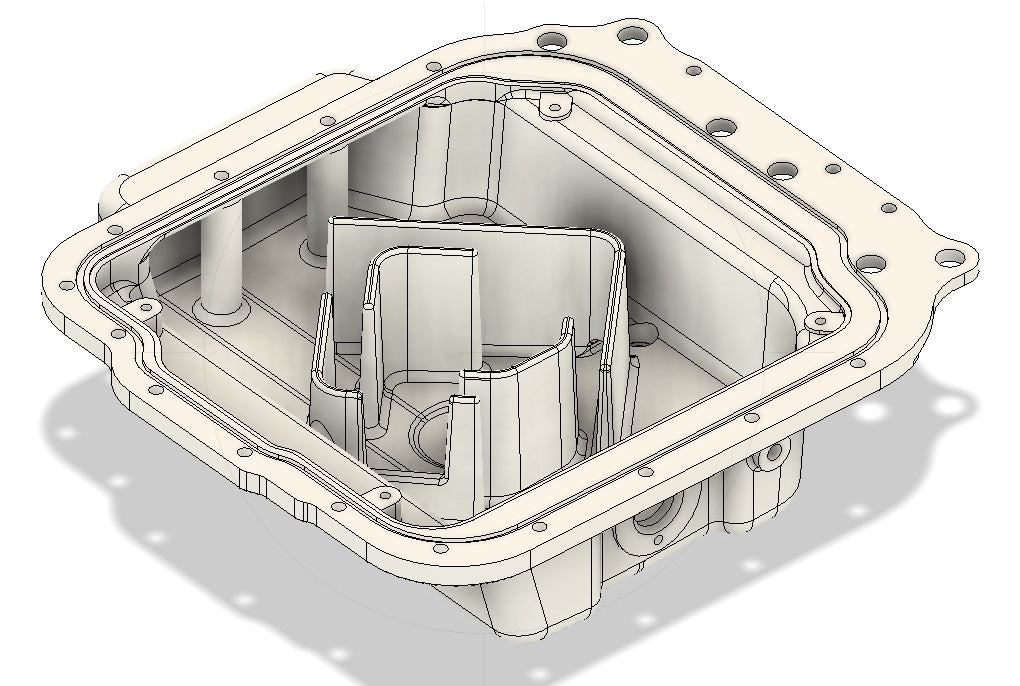

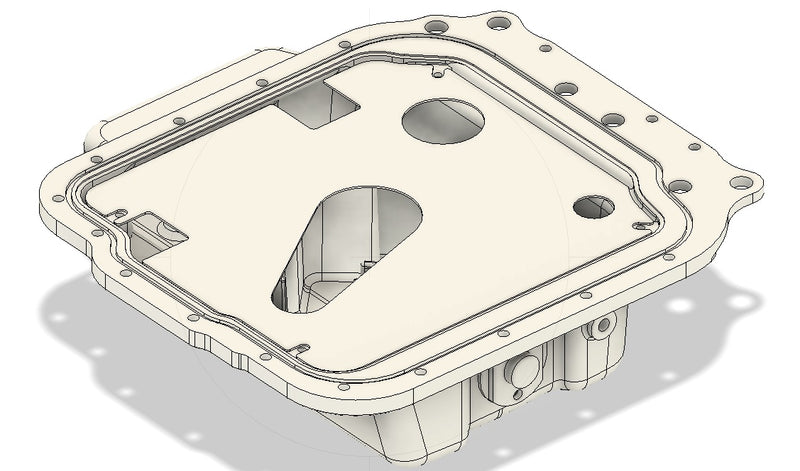

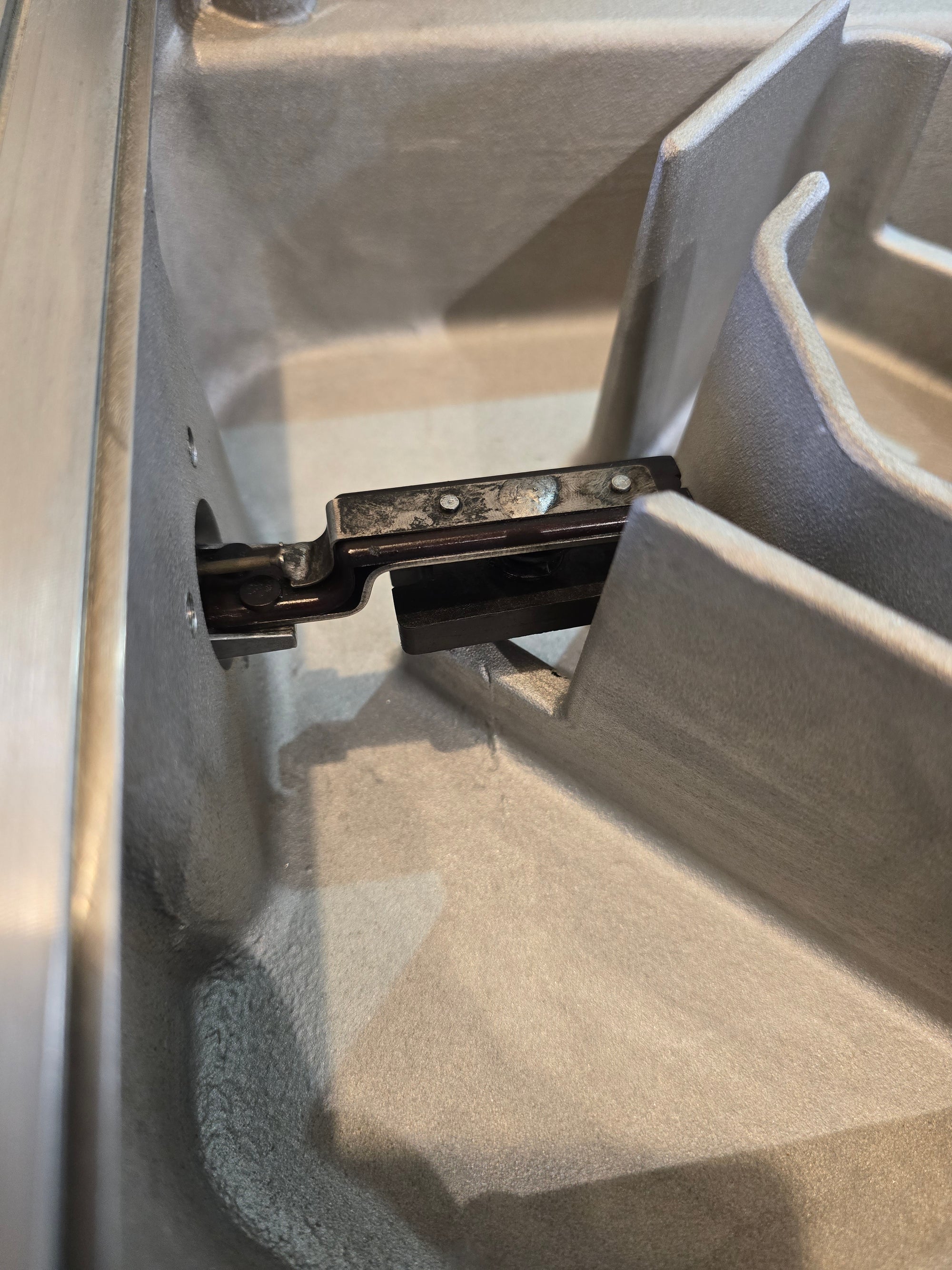

Internal baffle system designed to prevent oil starvation under track conditions( this has been track tested before and after with datalogs proving results)

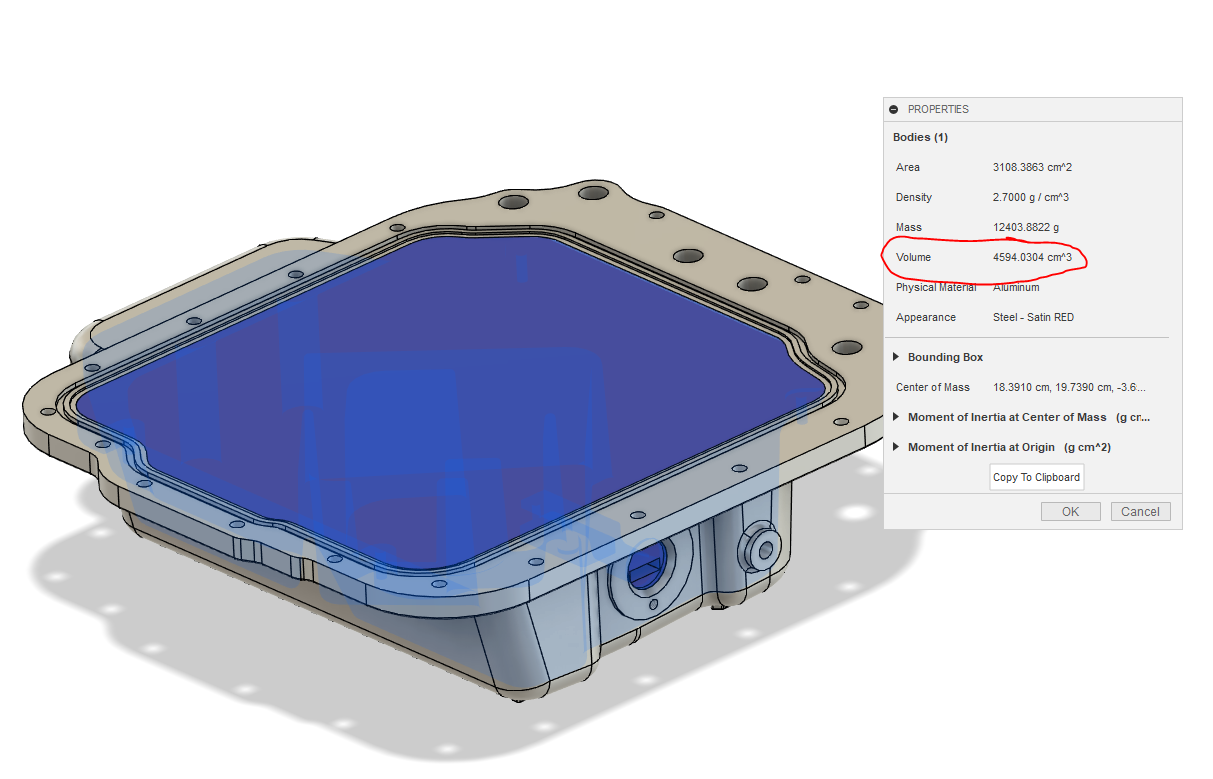

Increased oil capacity(  +1.5 litres)

Does not sit below OEM subframe.

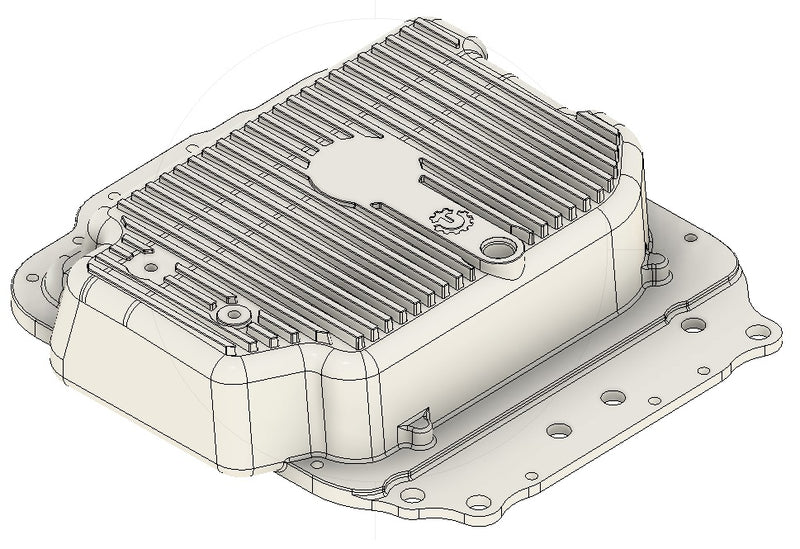

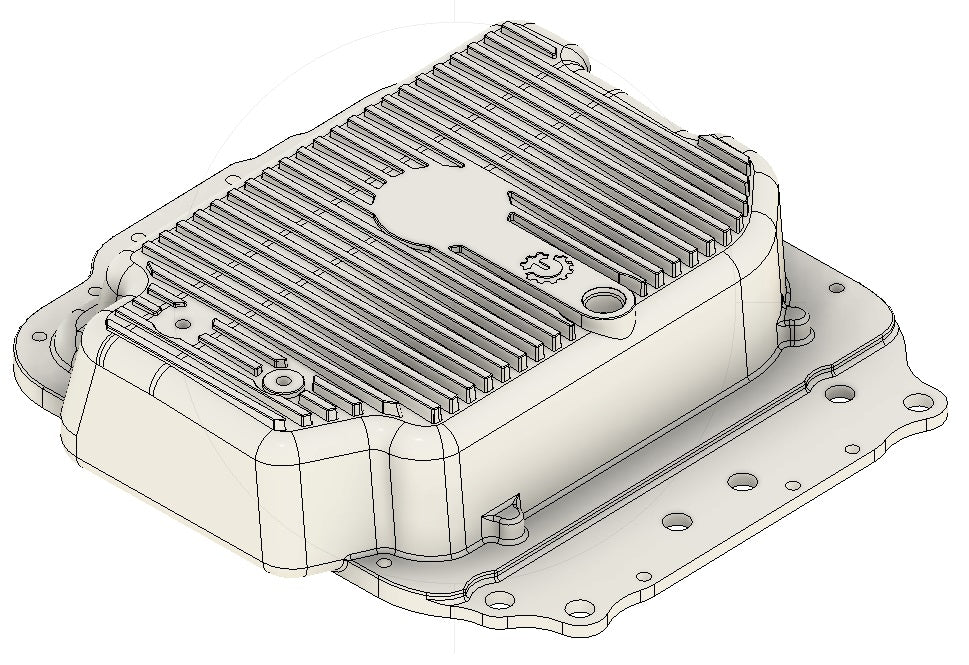

External & internal fins for increased oil heat transfer ( has been shown to drop oil temps by up to 20degree F during track use)

1/8 NPT oil temp sensor bung ( plug included)

Oem oil level sensor port

All hardware and O-rings included.

If you are using these with the FFE FD motor mounts, you will want to select the extended hardware option. You can use this pan with FFE, or OEM motor mounts. OEM motor mounts will require 5mm extended hardware also.
