EFR 6258 225-450 HP Turbo

$1,662.00

$1,662.00

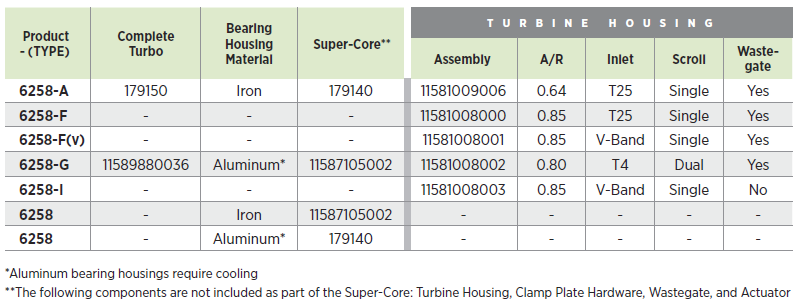

Use the drop down menu to create your BorgWarner EFR 6258 Turbocharger. This allows you to create the following turbos:

A-Type = 179150 (179140+11581009006) or 11587105002 + 11581009006
F Type = 179140 + 11581008000 or 11587105002 + 11581008000
F(v)-Type = 179140 + 11581008001 or 11587105002 + 11581008001
G-Type = 11589880036 (11587105002+11581008002) or 179140 + 11581008002
I-Type = 179140 + 11581008003 or 11587105002 + 11581008003

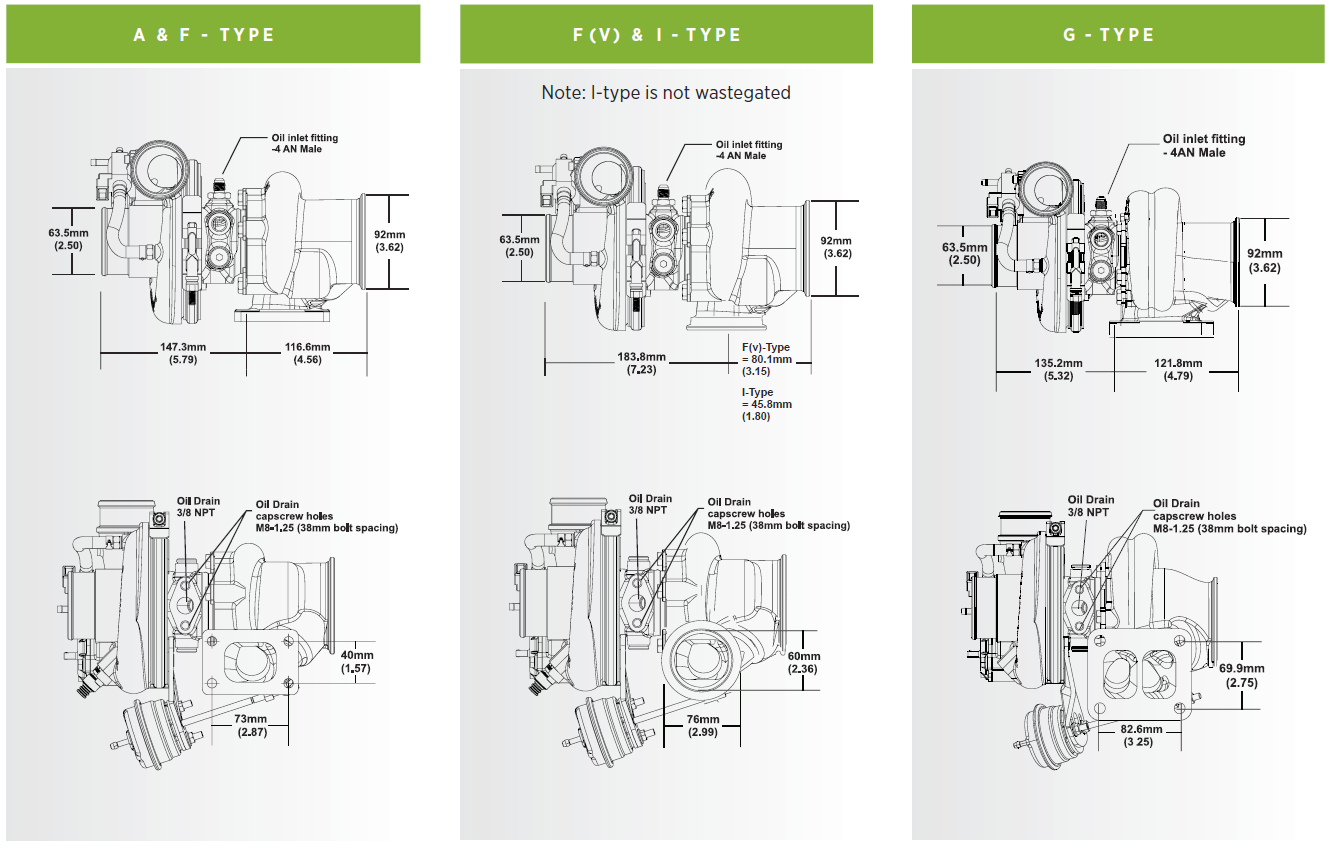

The EFR 6258 has three different flange types available all with a 3" V-Band discharge:

T25 0.64 & 0.85
T4 0.85
V-Band 0.80 & 0.85

The EFR 6258 includes the following features:

Gamma-Ti turbine wheel
Inegrated Compressor Recirculation Valve (CRV)
Dual ceramic ball bearing assembly with metal cage
Boost Control Solenoid Valve (BCSV)
Forged Milled Compressor Wheel (FMW)
Extended tip technology
Compressor cover with speed sensor mounting provisions
90 degree and SX-E Style Compressor Housings
Aluminum or Iron SuperCore Options

6258

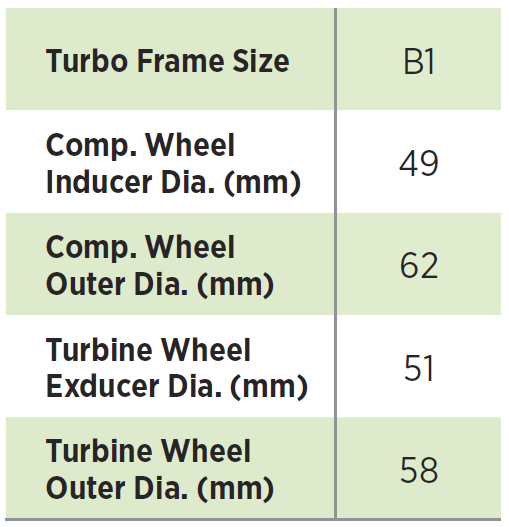

6258 - spec
