EFR 6758 250-500 HP Turbo

• A-Type = 179388 (179375+11581009006) or 11587105001 + 11581009006
• F Type =  11589880034 (11587105001+11581008000) 179375 + 11581008000
• F(v)-Type = 11589880035 (11587105001+11581008001) or 179375 + 11581008001
• G-Type = 11589880037 (11587105002+11587105001) or 179375 + 11581008002
• I-Type = 179375 + 11581008003 or 11587105001 + 11581008003

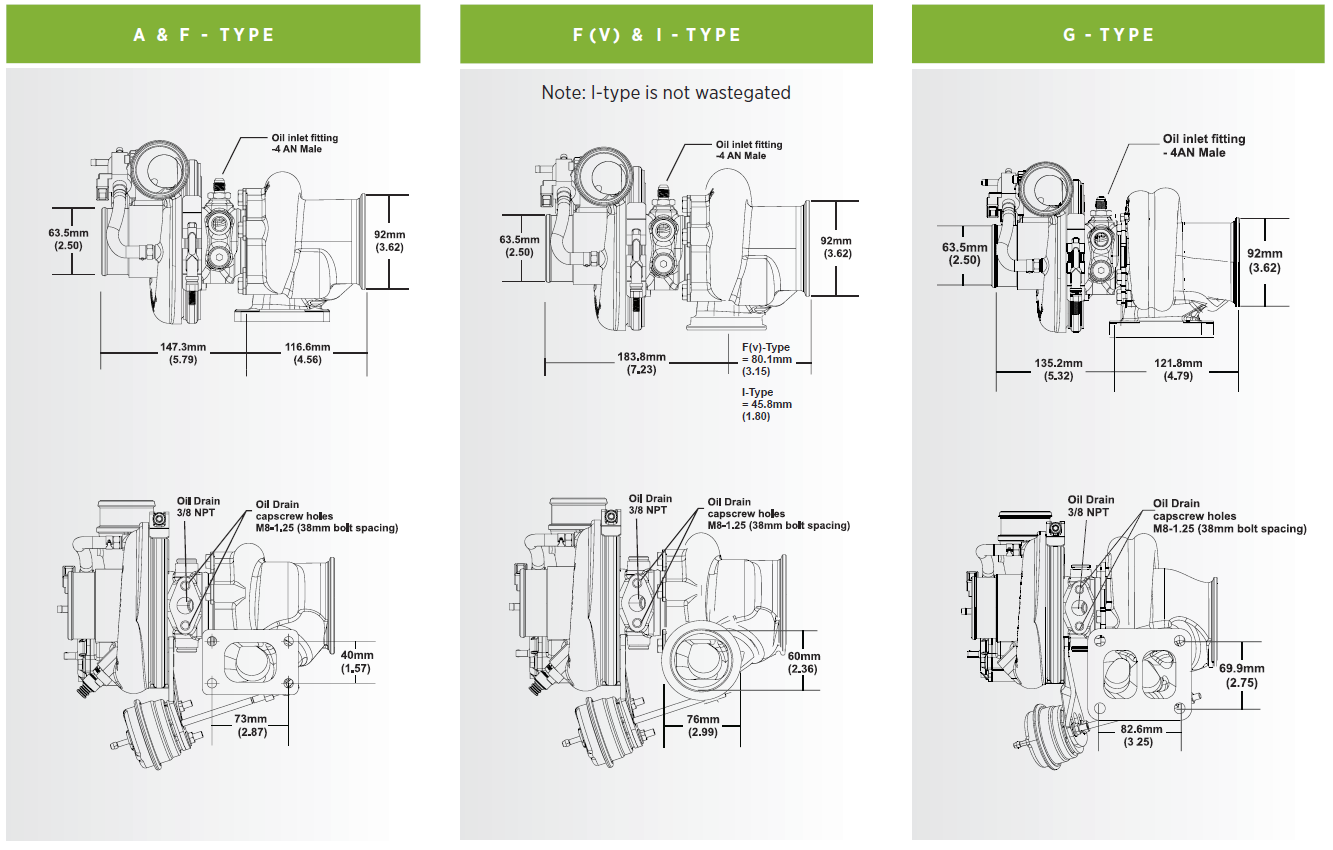

The EFR 6758 has three different flange types available all with a 3" V-Band discharge:

• T25 0.64 & 0.85
• T4 0.85
• V-Band 0.80 & 0.85

The EFR 6758 includes the following features:

• Gamma-Ti turbine wheel
• Inegrated Compressor Recirculation Valve (CRV)
• Dual ceramic ball bearing assembly with metal cage
• Boost Control Solenoid Valve (BCSV)
• Forged Milled Compressor Wheel (FMW)
• Extended tip technology
• Compressor cover with speed sensor mounting provisions
• 90 degree and SX-E Style Compressor Cover Upgrades
• Iron or Aluminum Supercore options
