Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold

Turblown Cast Rotary FC3S Lower Intake Manifold

$1,050.00

$1,050.00

Customer Reviews

Based on 1 review Write a review
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold
Turblown Cast Rotary FC3S Lower Intake Manifold

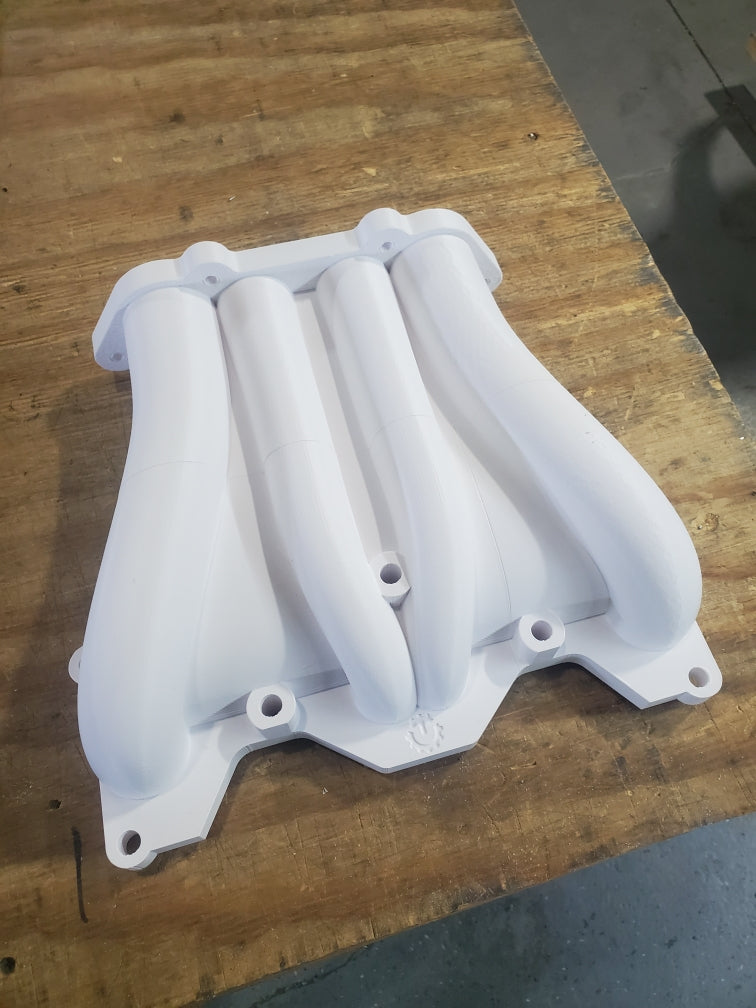

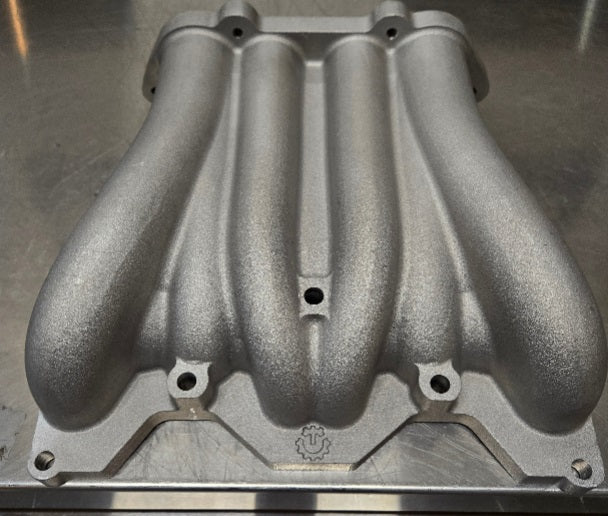

We have just finished the sample models of our FC3S semi pport lower intake manifold, and they are in testing now. A production run of 200+ units starts next week( 5/20/2025)

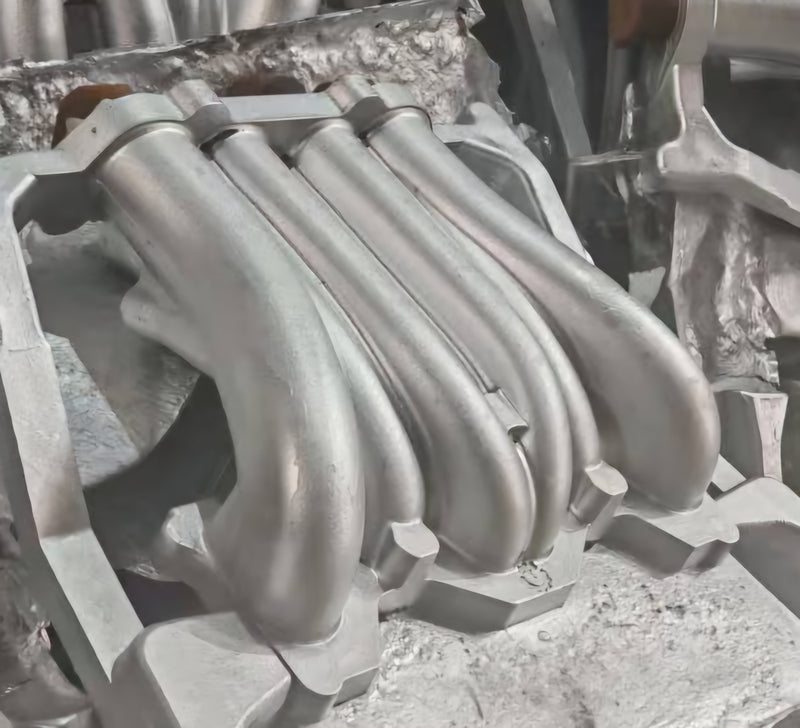

We are currently half way done with the mold for the Sideport model, samples are 30 days out.

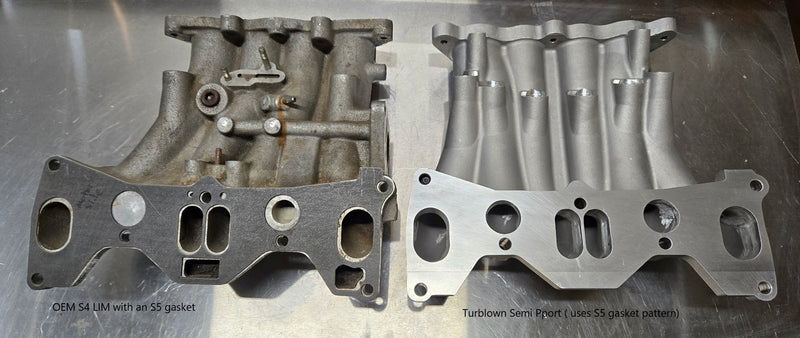

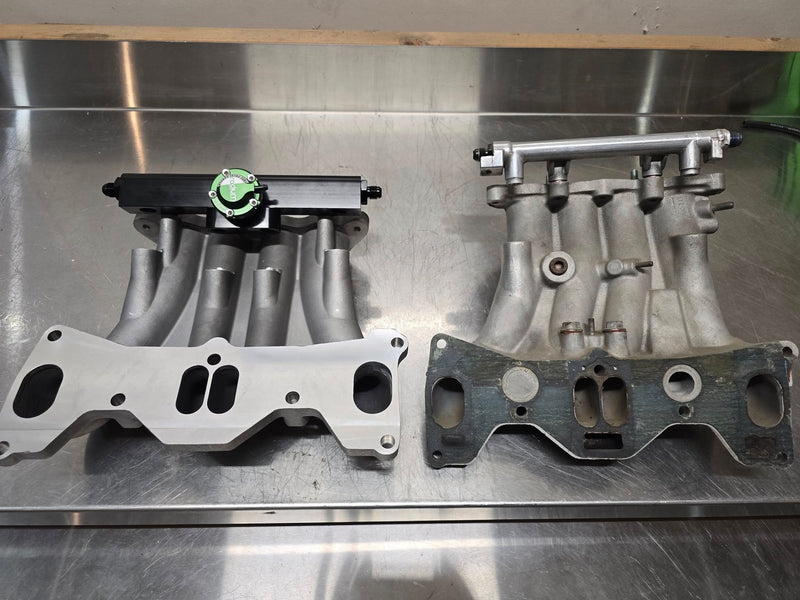

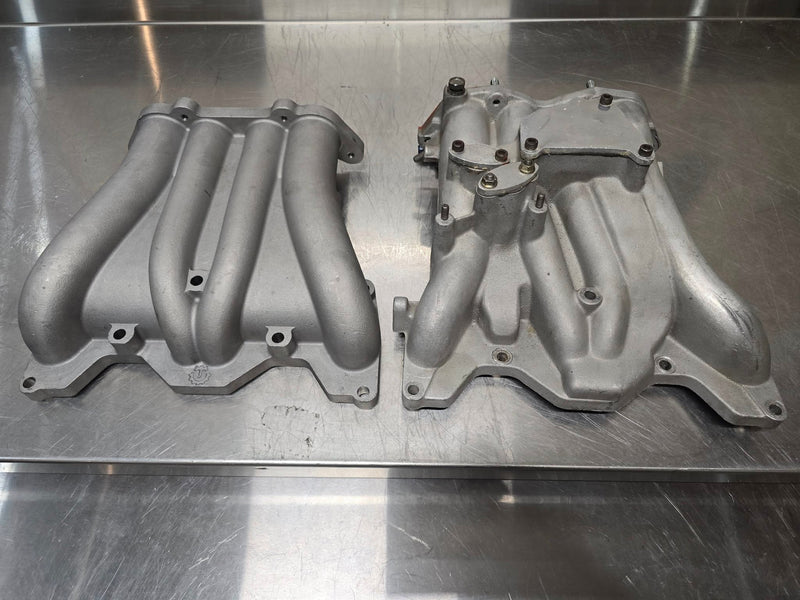

Cast aluminum lower intake manifolds coming soon for both  S4/S5 13BT FC. Both side-ported & semi-pport models( 29mm for semi pport FC models).FC LIM is port matched to S5 engine runner sizes. If you are running an S4 engine, best to port the plates to an S5 size( see photos).

Key features:

  • Dyno proven models featuring many variations to achieve best all around performance( not just top end RPM ). Units are equal length, and equal bend for proper balance between rotors. Tapered runner design, only slightly oversized from OEM. Does not hurt throttle response or bottom end/midrange performance.
  • 6 injector for semi pport, 4 for side port ( Billet 8AN fuel rail included with purchase).  Does not work with other fuel rails, as the fuel injector location has been changed for better fuel delivery.
  • All oem emissions removed( for off road use only**) FC water passage removed.
  • LIM flange o-ringed( between UIM/LIM)
  • Mounting tabs for heat-shields
  • Properly clears all of our corresponding Cast EWG FC Turbo System. Will not work with our IWG FC turbo systems.

This FC lower intake manifold shares the S6 flange between the UIM & LIM. You can use the OEM FD3S UIM, or the Turblown UIM model.

OEM turbo coolant feed port is  removed from FC LIM; no coolant will be flowing through LIM like stock. Coolant feed will have to be pulled from rear iron or water pump housing.

LIM will NOT work with off the shelf fuel rails, as we have changed the injector positions for optimum spray pattern position.  We do sell optional 48mm dummy injectors for those who do not want to run every injector position.  Fuel rail is for 14MM upper and lower o rings only 48mm total length Injector Dynamics injectors. No press in sleeves required. We have not checked fitment with the OEM FC turbos.

8AN ORB fuel rail does not come with AN adapters, or Pulsation dampner. Fuel rail does not require 8AN lines, one can use 8AN ORB to 6AN adapters.

Dummy injector blanks available for those who do not want to run all injectors.

Supplied with all necessary mounting hardware

If you are in the NZ or AUS regions please purchase these from our exclusive local distributor; Pac Performance
