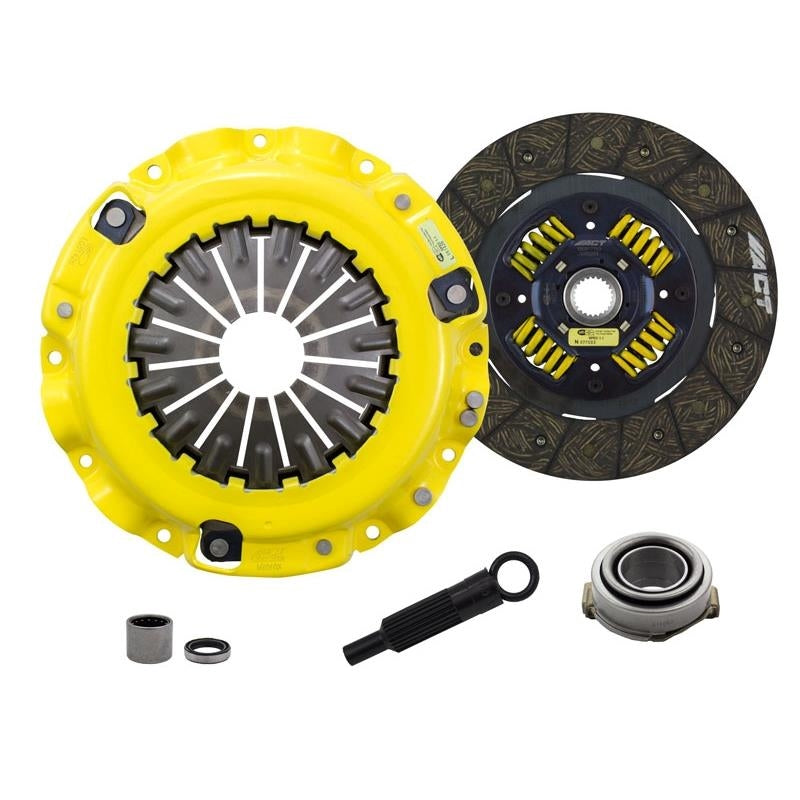

ACT XT/Perf Street Sprung FC3S Clutch


Z65-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Feel: Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle;

Life: Longer friction life, extended by ACT's exclusive diaphragm design;

Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade;

Recommended Use: Recommended for street and race use;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

Dimensions (L/W/H) 14x14x5
Weight 19.7 lbs
MSRP $607.00
Warranty 12 Months
Product Weight (lbs.) 16.2
Input Shaft Diameter (Inches) 1
Spline Count 23
Disc Type Street Disc
Disc Diameter (Inches) 9.4
Disc Diameter (mm) 240
Pressure Plate Type Xtreme
Torque Capacity Over OE 80%
Torque Capacity (ft/lbs.) 440
ItemCodeDesc XT/Perf Street Sprung


For Install Instructions Please Click Here
