Garrett G42-1450

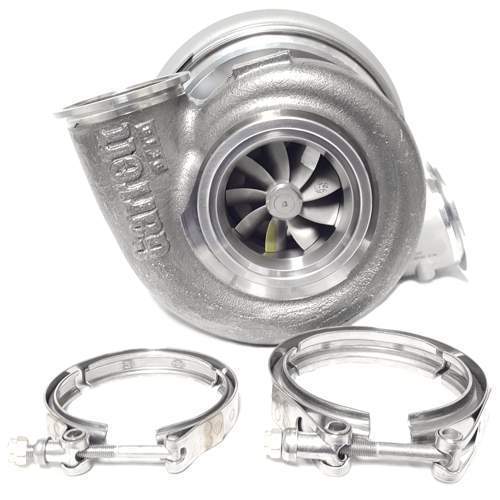

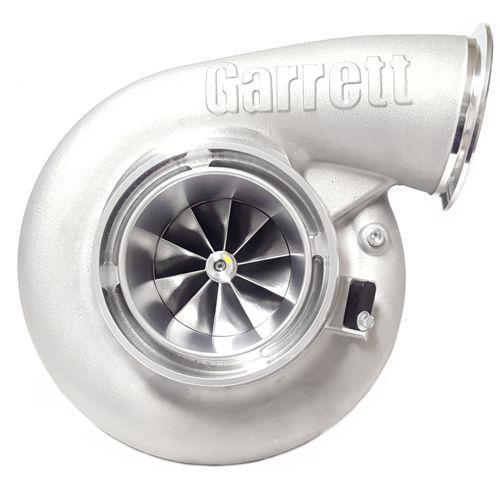

Garrett G42-1450 Turbo Assembly Kit O/V V-Band / V-Band 1.01 A/R

G Series turbochargers feature the latest innovations in turbocharger technology. Advanced compressor and turbine aero offer enthusiasts a wide range of performance boosting solutions for 2.0L - 8.0L engine platforms. Standard and reverse rotation options are offered with a variety of turbine housing configurations making it easy to select the right turbocharger for your application.

Garrett® G Series Turbine Wheel: By incorporating the latest and advanced ULTRA HIGH FLOW aerodynamic designs within the Garrett G Series Turbine Wheel, G Series models offer previously unimagineable power levels by frame size and improvements in spool! Made from Mar-M super alloy, the G Series Turbine Wheel withstands up-to 1050 degrees Celsius; +200 degrees Celsius over inconel turbine wheels.

Garrett® G Series Compressor Wheel: Forged fully-machined compressor wheel and new aerodynamics design increases maximum horsepower output, up to +30%. The G-Series aero design not only increases peak flow but higher power levels within a large operating RPM range.

Garrett® G Series Turbine Housings: Standard Garrett Stainless Steel material. V-band CHRA to Turbine Housing interface for a full 360 degree rotation.

Features

  • Quick spooling, high horsepower solution for 2.0 liter up to 7.0 liter engine platforms
  • Ten blade, forged, fully-machined G Series compressor wheel with high flowing aero
  • Low inertia compressor wheel resulting in faster boost response
  • New turbine aero wheel flows 10% more and has peak efficiency of 77% (Compared to GTX42 at 74% with 1.01A/R)
  • Engineered with inconel super alloy to withstand operating temperatures up to 950C

Specifications

  • Compressor Wheel Inducer: 79mm
  • Compressor Wheel Exducer: 98mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.85
  • Turbine Wheel Inducer: 82mm
  • Turbine Wheel Exducer: 75mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: V-Band
  • Turbine Housing Outlet: V-Band
$3,451.00
