SX-E S400 500-1575 HP Turbo

$1,604.00

$1,604.00

Use the drop down menu to create your BorgWarner SX-E S400 Turbocharger. This allows you to create the following turbos:

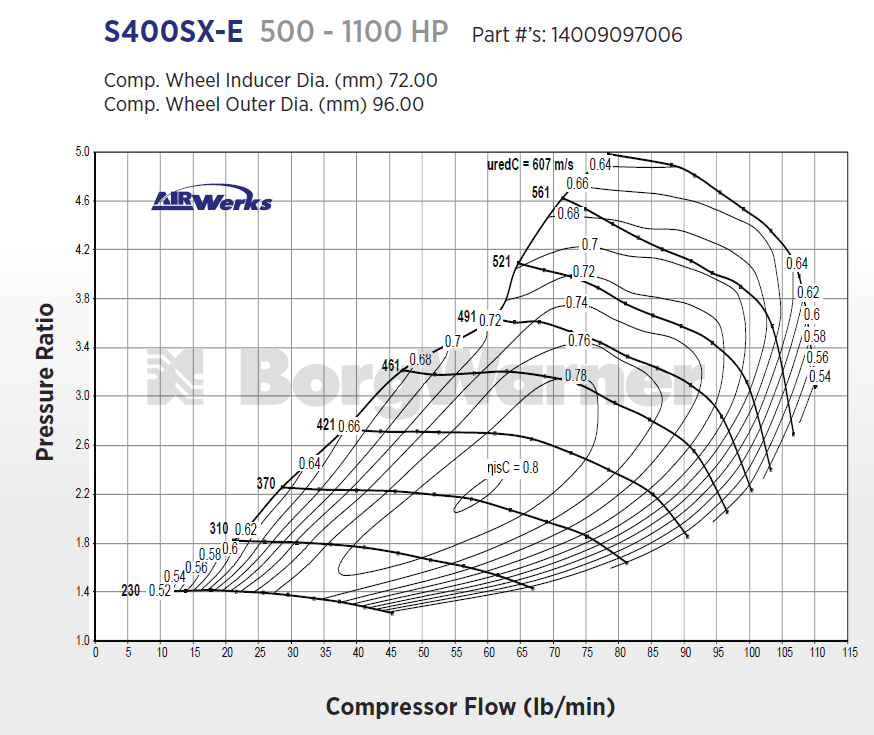

S472 - 72mm inducer - 87mm turbine wheel - 14009097006

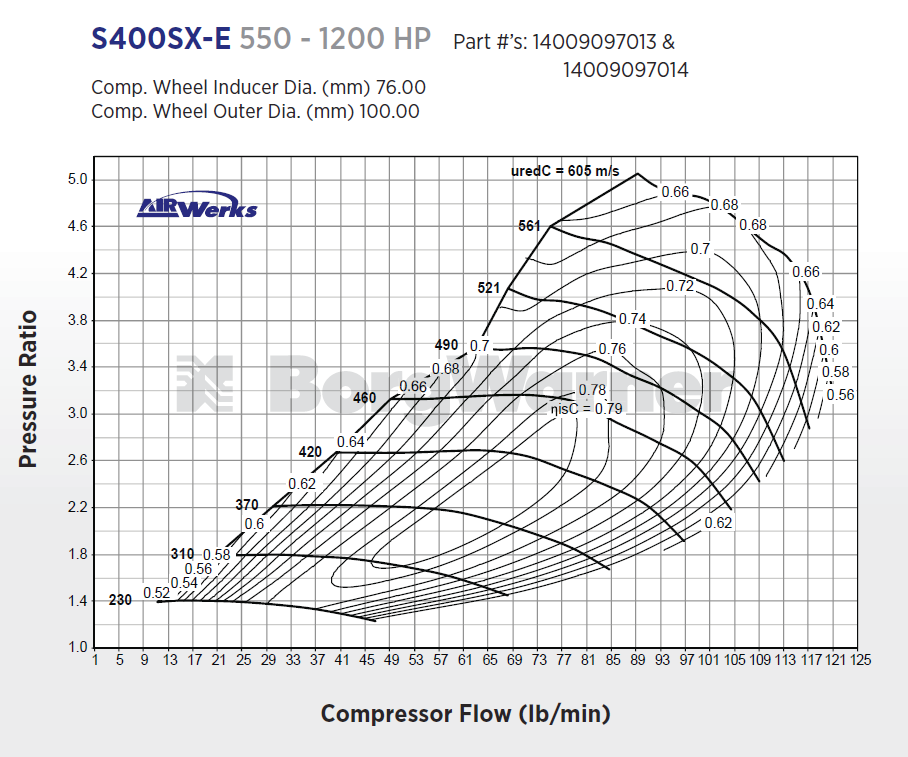

S476 - 76mm inducer - 87mm turbine wheel - 14009097014
S476 - 76mm inducer - 96mm turbine wheel - 14009097013

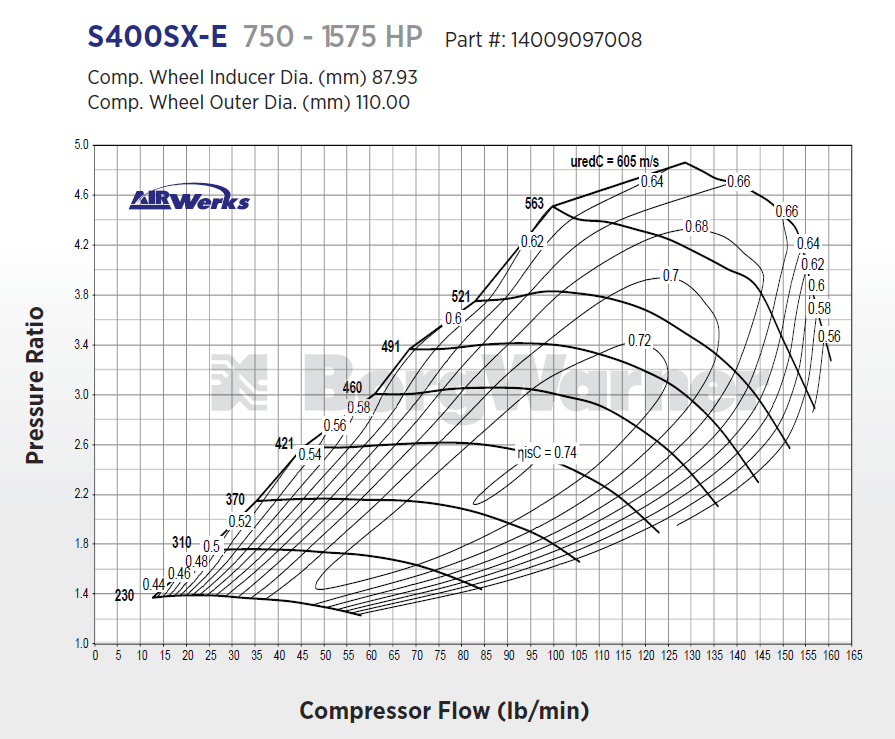

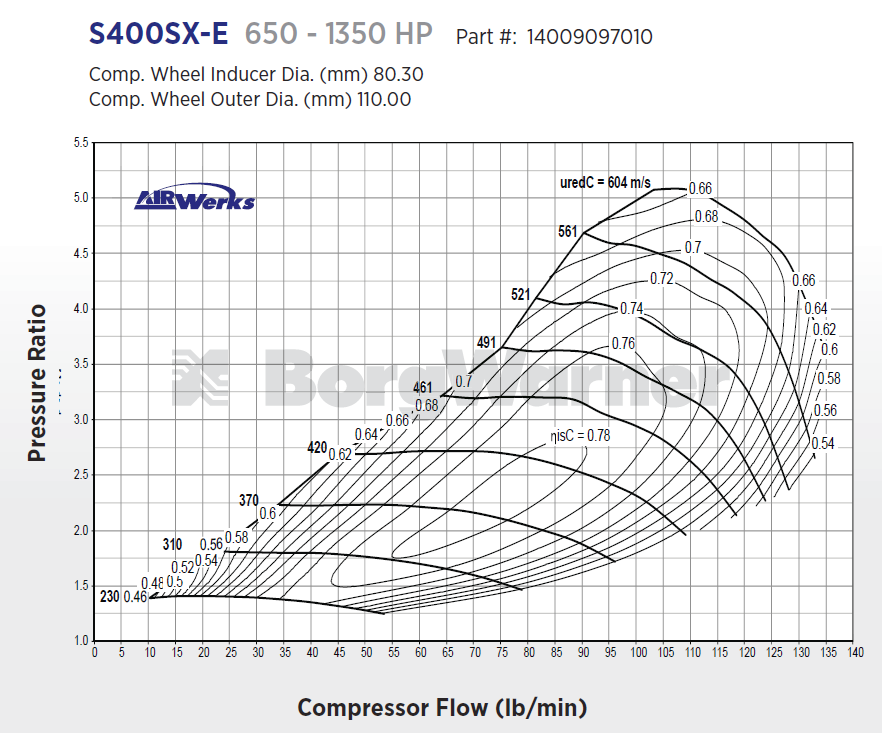

S480 - 80mm inducer - 96mm turbine wheel - 14009097010
S488 - 88mm inducer - 96mm turbine wheel - 14009097008

BorgWarner SX-E S400 has four T4 turbine housings available for 87mm turbine wheel and four T6 housings for the 96mm turbine wheel :

T4 87mm Turbine Housings

0.90 Twin Scroll - 178787
1.00 Twin Scroll - 178788
1.10 Twin Scroll - 178789
1.25 Twin Scroll - 178790

T6 96mm Turbine Housing

1.15 Twin Scroll - 14961019007
1.32 Twin Scroll - 171698
1.45 Twin Scroll - 14961016101
1.58 Twin Scroll - 14961016100

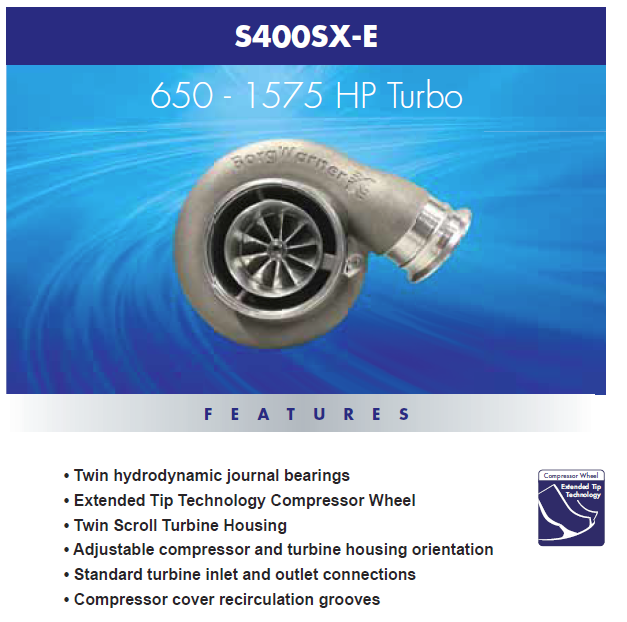

BorgWarner SX-E S400 Features:

Twin hydrodynamic journal bearings
Extended Tip Technology Compressor Wheel
Twin Scroll Turbine housing
Adjustable compressor and turbine housing orientation
Standard turbine inlet and outlet connections
Compressor cover recirculation grooves
Integrated speed sensor port
