Home / Products / SX-E S500 900-1875 HP Turbo

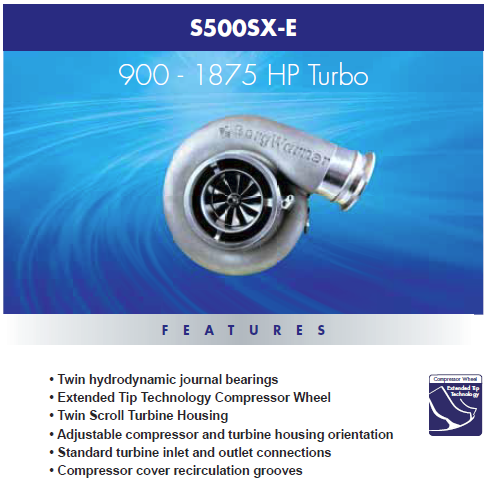

SX-E S500 900-1875 HP Turbo
SX-E S500 900-1875 HP Turbo
SX-E S500 900-1875 HP Turbo
SX-E S500 900-1875 HP Turbo

SX-E S500 900-1875 HP Turbo

$2,695.00

$2,695.00
SX-E S500 900-1875 HP Turbo
SX-E S500 900-1875 HP Turbo
SX-E S500 900-1875 HP Turbo
SX-E S500 900-1875 HP Turbo

Use the drop down menu to create your BorgWarner SX-E S500 Turbocharger. This allows you to create the following turbos:

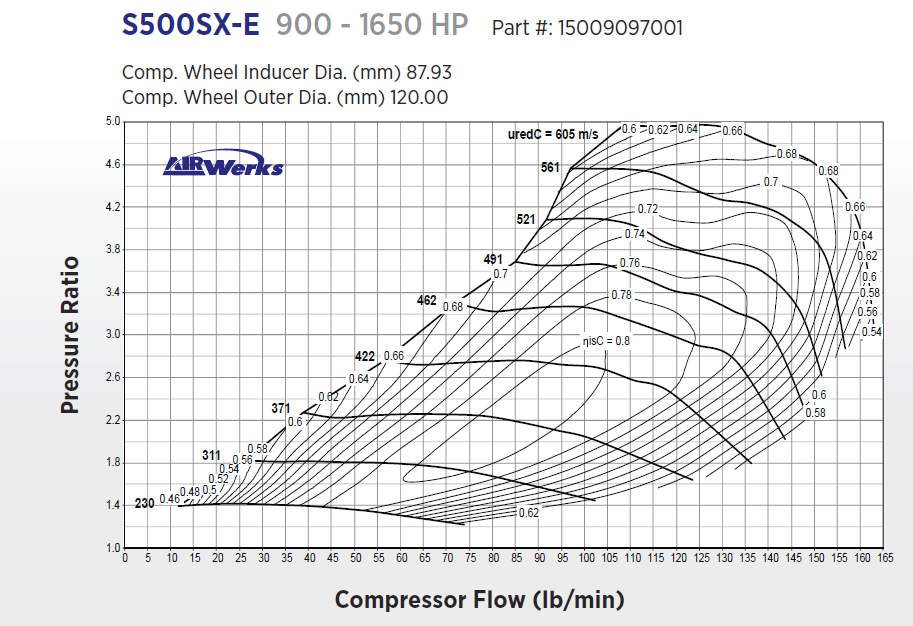

  • S588 - 88mm Inducer - 110mm Turbine Wheel - 15009097001

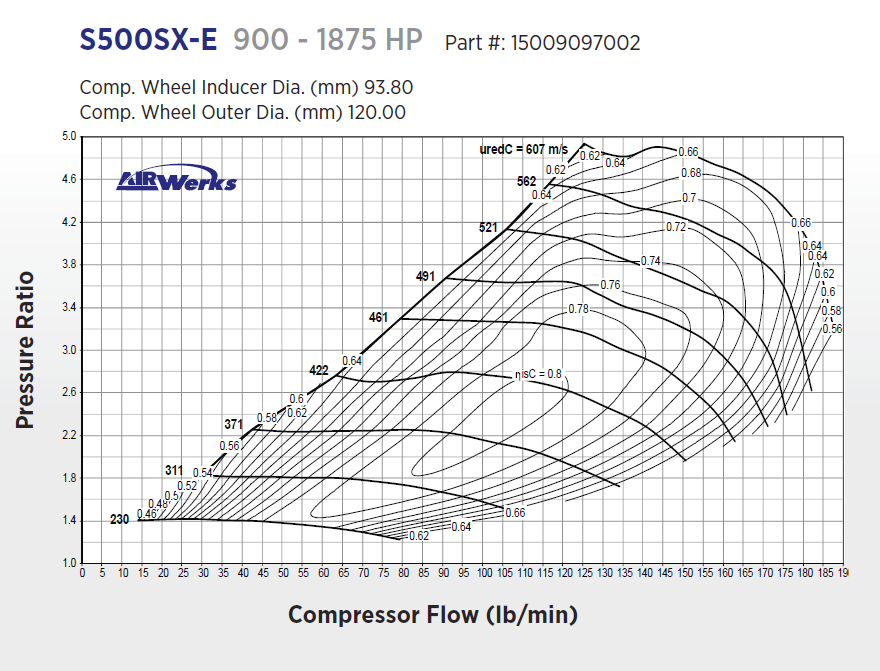

  • S594 - 94mm Inducer - 110mm Turbine Wheel - 15009097002



BorgWarner SX-E S500 has eight T6 turbine housings to choose from:

  • 0.85 - Open Volute - 3.62" Turbine Inlet to Centerline - 179159
  • 1.00 - Open Volute - 3.62" Turbine Inlet to Centerline - 179160
  • 1.15 - Open Volute - 4.25" Turbine Inlet to Centerline - 179161
  • 1.30 - Open Volute (50" longer discharge) - 3.62" Turbine Inlet to Centerline - 178498
  • 1.45 - Twin Scroll - 4.25" Turbine Inlet to Centerline - 179162
  • 1.15 - Twin Scroll - 3.62" Turbine Inlet to Centerline - 179478
  • 1.45 - Twin Scroll - 3.62" Turbine Inlet to Centerline - 179192
  • 1.60 - Twin Scroll - 3.62" Turbine Inlet to Centerline - 179193

BorgWarner SX-E S500 Features:

  • Twin hydrodynamic journal bearings
  • Extended Tip Technology Compressor Wheel
  • Twin Scroll Turbine housing
  • Adjustable compressor and turbine housing orientation
  • Standard turbine inlet and outlet connections
  • Compressor cover recirculation grooves
  • Integrated speed sensor port
