EFR 9180 600-1000 HP Turbo

$2,250.00


Use the drop down menu to create your BorgWarner EFR 9180 Turbocharger. This allows you to create the following turbos:

  • Type-B = 179358 (179356 + 12801008002) or 12919097001 + 12801008002
  • Type-C = 12809880000 (179356 +12801019009) or 12919097001 + 12801019009
  • Type-D = 179394 (179356 + 12801019001) or 12919097001 + 12801019001
  • Type-H =  179356 + 12801008006 or 12919097001 + 12801008006



The EFR 9180 has two different flange types available all with a 3" V-Band discharge:

  • T3 - 0.83
  • T4 - 0.92, 1.05, 1.45



The EFR 9180 includes the following features:

  • Gamma-Ti turbine wheel
  • Inegrated Compressor Recirculation Valve (CRV)
  • Dual ceramic ball bearing assembly with metal cage
  • Boost Control Solenoid Valve (BCSV)
  • Forged Milled Compressor Wheel (FMW)
  • Extended tip technology
  • Compressor cover with speed sensor mounting provisions
  • Aluminum or Iron Supercore options
  • SX-E compressor cover upgrade

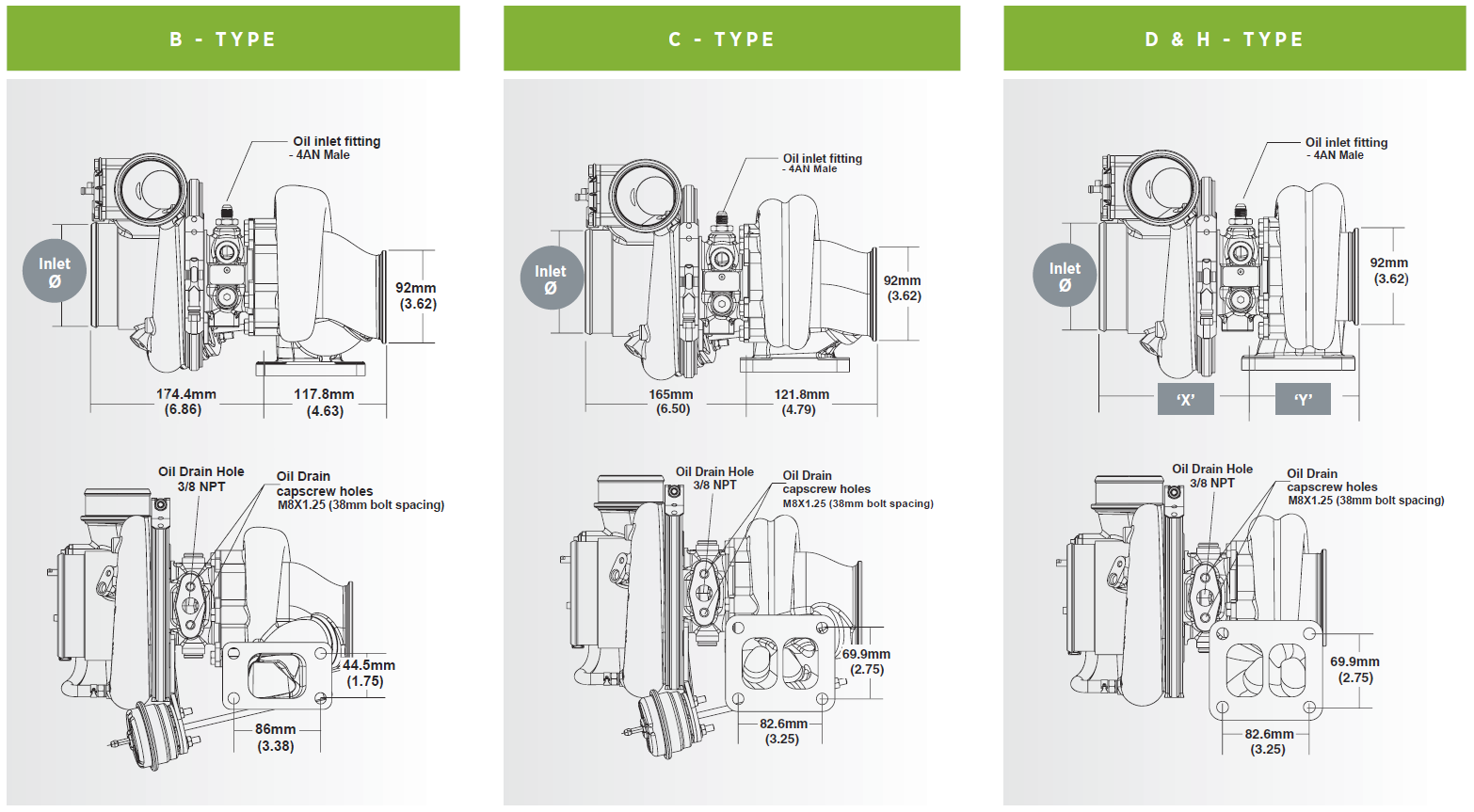

EFR 9180 Types

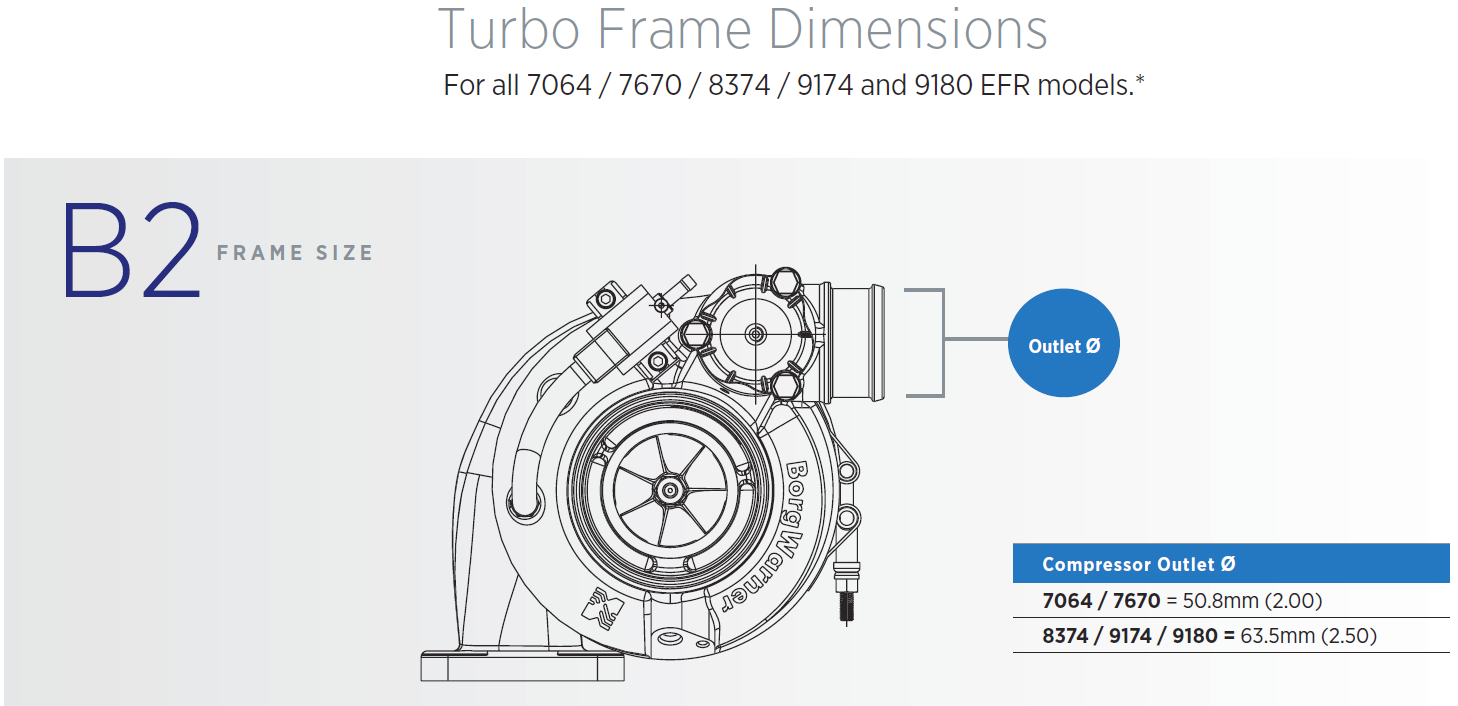

9180 Specs

EFR 9180 Compressor MAP
